Trucks

Durability that runs as hard as you do.

The Hydro-Spade 600/800/1200 single axle trucks bring the power and durability you need, without the restrictive costs and complications of larger trucks.

Truck

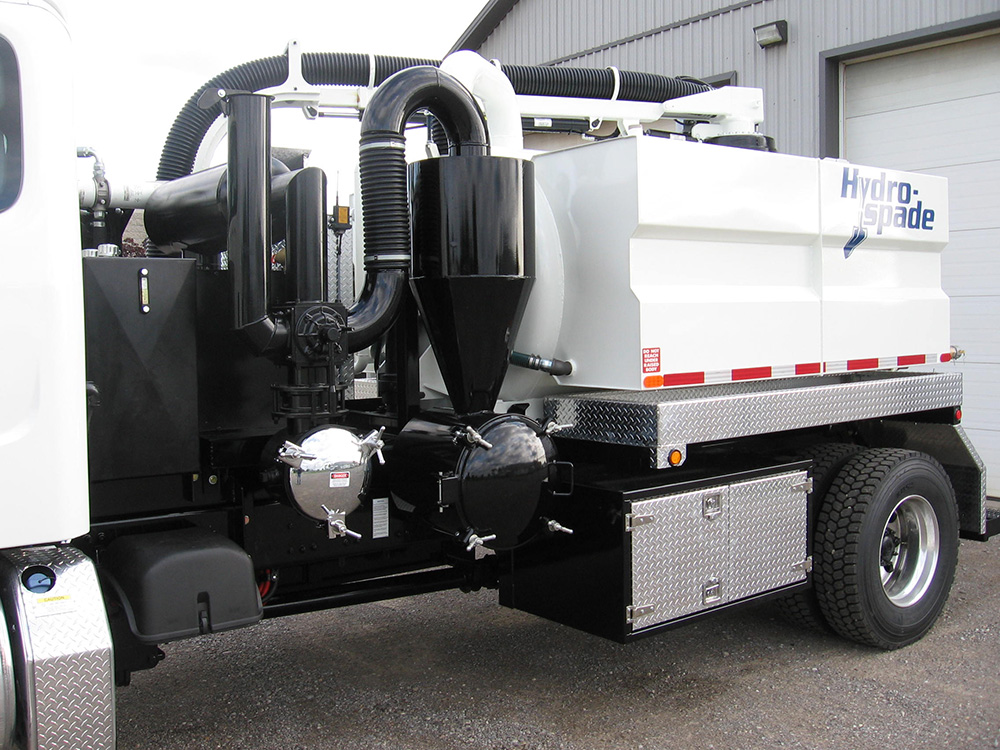

Hydro truck

A simple way to do big jobs.

Where large hydro vacs come with complicated systems and expensive maintenance, our trucks make your life easier. Built with simple systems and trusted, quality parts, they keep you away from frustrating downtime. They do the big jobs, simply.

  • Safe and reliable potholing
  • Precise soil trenching and directional drilling
  • Thorough industrial cleaning
  • Efficient debris removal with wireless boom
  • Cold-weather digging

When you need the power for serious excavation work, Hydro-Spade is the perfect choice for reliable durability.

Product Features

Powerful inside and out.

Hydro-Spade trucks are designed with your work in mind.

Loaded truck
Maximize Payload

A specialized balanced weight distribution design allows balance sensitive trucks to maximize payload.

Volume control
Reduce Noise

Enclosed blower compartment helps minimize blower noise.

Remote
Enjoy Easy Operations

Conveniently located hydraulic operating controls and a wireless handheld controller for boom functions allow for easy operations in every job.

Filter
Protect Your Equipment

Positive shut off protection and filter with spun bonded filter cartridges provide great protection for the blower unit.

Valve
Clean With Ease

Convenient rear access door, 6” drain valve and blower filtration can be cleaned quickly with a water pressure wand.

Snowflake
Navigate Winter Conditions

Heated wash cabinet, heated water lines and antifreeze kits to prevent the water system from freezing.

Product Specs

Detailed Specifications

View a complete list of product specifications below or download the product specifications brochure for convenient future reference.

Each unit comes with a 1 year warranty.
Chassis warranty as per manufacturer.

Equipment
&
Details
Tank
  • 600 / 800/ 1200 USG
  • Carbon steel debris tank
  • ASME style flanged and dished head
  • Hydraulic opening & locking rear door
  • 4” intake and 6” discharge valve in rear head
  • Hoisted tank
Chassis
  • GVWR 19,500 lbs - 39,000 lbs
Vacuum System
  • PD Blower
  • Washable final filter
  • 900-2200 cfm @15-28hg
  • Cyclone
Vac Boom
  • 6-way hydraulic boom
  • Slew drive w/safety switches
  • Wireless controls
  • Wired pendant control
  • 5" vac hose with 4" dig tubes or 6" vac hose with 5" dig tubes
Water System
  • 5.5GPM @ 3500 PSI - 10.5 GPM X 2900 PSI
  • Hydraulic driven
  • Spring return hose reel
  • 50’x3/8 pressure hose
  • 220 - 600 USG side mounted water tanks


Optional

  • 420,000 btu boiler
  • Winter antifreeze kit
  • Cabinet heater
Controls
  • Curb side control panel
  • All operating controls mounted in cabinet
  • Toggle switches
  • Wireless: boom operations, water pump on/off, vacuum relief
  • Wire boom pendant
Drive
  • Hydraulic or belt
Miscellaneous
  • Tool storage
  • LED lighting
  • Bright aluminum checker plate rear dump deflector plate
  • Control panel mounted in curb side enclose
  • Sandblasted and painted one color
  • Decals and conspicuity tape strips
  • Operators manual

Next Steps

Keeping it simple to keep you working.

Adding Hydro-Spade to your vehicle lineup is simple:

1

Choose your

Size

Select the tank capacity you’ll need for the work ahead.

2

Choose your

Power

Select from a list of available pump and blower options.

3

Choose your

Base

Fit your equipment on the proper structure.

4

Put it to

Work

Let Hydro-Spade get you onto any job site and stay there!
